LiDAR sensors

Founded in 2015, EAI Technology is a leading provider of lidar sensors and robotic mobile solutions. YDLIDAR is a LiDAR brand of EAI Technology, and its products cover all type of LIDARs such as triangle, TOF and solid state LiDARs. YDLIDARS are widely used in robot cleaners, educational robots, service robots, digital multimedia interaction, industrial automation, security and intelligent transportation.

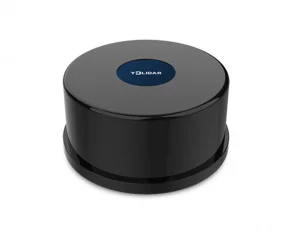

YDLIDAR TG30

YDLIDAR TG30 is a 360°2D LiDAR developed by YDLIDAR team. Based on the principle of ToF, it is equipped with related optics, hardware and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360° to continuously obtain the angle information and output the point cloud data of the scanning environment while ranging.

Product features

  • IP65 protection level
  • 360° omnidirectional scanning and 5-12Hz frequency
  • Ranging frequency up to 20 kHz
  • High accuracy, stable performance
  • Strong resistance to ambient light interference
  • Class I eye safety

Applications

  • Robot navigation and obstacle avoidance
  • Industrial automation
  • Robot ROS teaching and research
  • Regional security
  • Smart transportation
  • Environmental scanning and 3D reconstruction
  • Digital multimedia interaction

Specification sheet: YDLIDAR TG30 Data Sheet V3.1
Development manual: YDLIDAR TG Series Development Manual V1.3
Shop online: YDLIDAR TG30

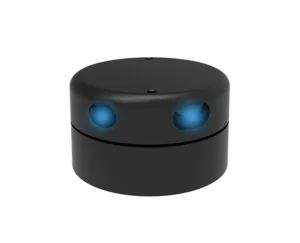

YDLIDAR G2

YDLIDAR G2 is a 360° 2D LiDAR developed by YDLIDAR. Based on the principle of triangulation, it is equipped with related optics, hardware and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360 ° to continuously output the angle information as well as the point cloud data of the scanning environment while ranging.

Product features

  • 360° scan ranging
  • High accuracy, stable performance
  • Wide measuring range
  • Strong resistance to ambient light interference
  • Industrial grade brushless motor drive, stable performance
  • Class I eye safety
  • 360 ° omnidirectional scanning and 5-12Hz frequency
  • Using optical and magnetic fusion technology to realize wireless communication and
    wireless power supply
  • High-speed ranging, up to 5000Hz frequency

Applications

  • Robot navigation and obstacle avoidance
  • Industrial automation
  • Regional security
  • Intelligent transportation
  • Environmental scanning and 3D reconstruction
  • Digital multimedia interaction
  • Robot ROS teaching and research

Specification sheet: YDLIDAR G2 Data Sheet V1.3
Development manual: YDLIDAR G2 development manual V2.0
Shop online: YDLIDAR G2

YDLIDAR G4

YDLIDAR G4 is a 360° 2D LiDAR developed by YDLIDAR team. Based on the principle of triangulation, it is equipped with related optics, hardware and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360 ° to continuously output the angle information as well as the point cloud data of the scanning environment while ranging.

Product features

  • 360° scan ranging
  • High accuracy, stable performance
  • Wide measuring range
  • Strong resistance to ambient light interference
  • Industrial grade brushless motor drive, stable performance
  • Class I eye safety
  • 360 ° omnidirectional scanning and 5 – 12 Hz frequency
  • Using optical and magnetic fusion technology to realize wireless communication and
    wireless power supply
  • High-speed ranging, up to 9000 Hz frequency

Applications

  • Robot navigation and obstacle avoidance
  • Industrial automation
  • Regional security
  • Intelligent transportation
  • Environmental scanning and 3D reconstruction
  • Digital multimedia interaction
  • Robot ROS teaching and research

Specification sheet: YDLIDAR G4 Data sheet V2.0
Development manual: YDLIDAR G4 development manual V2.0
Shop online: YDLIDAR G4

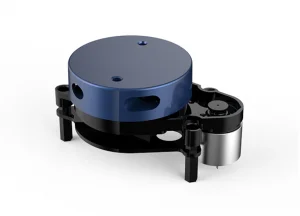

YDLIDAR X2

YDLIDAR X2 is a 360° 2D LiDAR developed by YDLIDAR. Based on the principle of triangulation, it is equipped with related optics, hardware and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360 ° to continuously output the angle information as well as the point cloud data of the scanning environment while ranging.

Product features

  • 360° scan ranging
  • High accuracy, stable performance
  • Wide measuring range
  • Strong resistance to ambient light interference
  • Low power consumption, small size, stable performance and long life
  • Class I eye safety
  • Motor speed is adjustable, the proposed speed is 6 Hz
  • Ranging frequency up to 3 kHz

Applications

  • Robot navigation and obstacle avoidance
  • Robot ROS teaching and research
  • Regional security
  • Environmental scanning and 3D reconstruction
  • Navigation and obstacle avoidance of home service robots/sweeping robots

Specification sheet: YDLIDAR X2 Data sheet V2.0
Development manual: YDLIDAR X2 development manual V1.1
Shop online: YDLIDAR X2

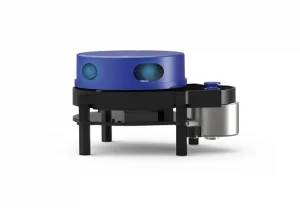

YDLIDAR X4

YDLIDAR X4 is a 360° 2D LiDAR developed by YDLIDAR. Based on the principle of triangulation, it is equipped with related optics, hardware and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360 ° to continuously output the angle information as well as the point cloud data of the scanning environment while ranging.

Product features

  • 360° scan ranging
  • High accuracy, stable performance
  • Wide measuring range
  • Strong resistance to ambient light interference
  • Low power consumption, small size, stable performance and long life
  • Class I eye safety
  • Motor speed is adjustable, the proposed speed is 6~12 Hz
  • High-speed ranging, ranging frequency up to 5 kHz

Applications

  • Robot navigation and obstacle avoidance
  • Robot ROS teaching and research
  • Regional security
  • Environmental scanning and 3D reconstruction
  • Navigation and obstacle avoidance of home service robots/sweeping robots

Specification sheet: YDLIDAR X4 Data sheet V2.0
Development manual: YDLIDAR X4 development manual V1.6
Shop online: YDLIDAR X4
